  • AIR back to wall WC pan & seat pack - rimless

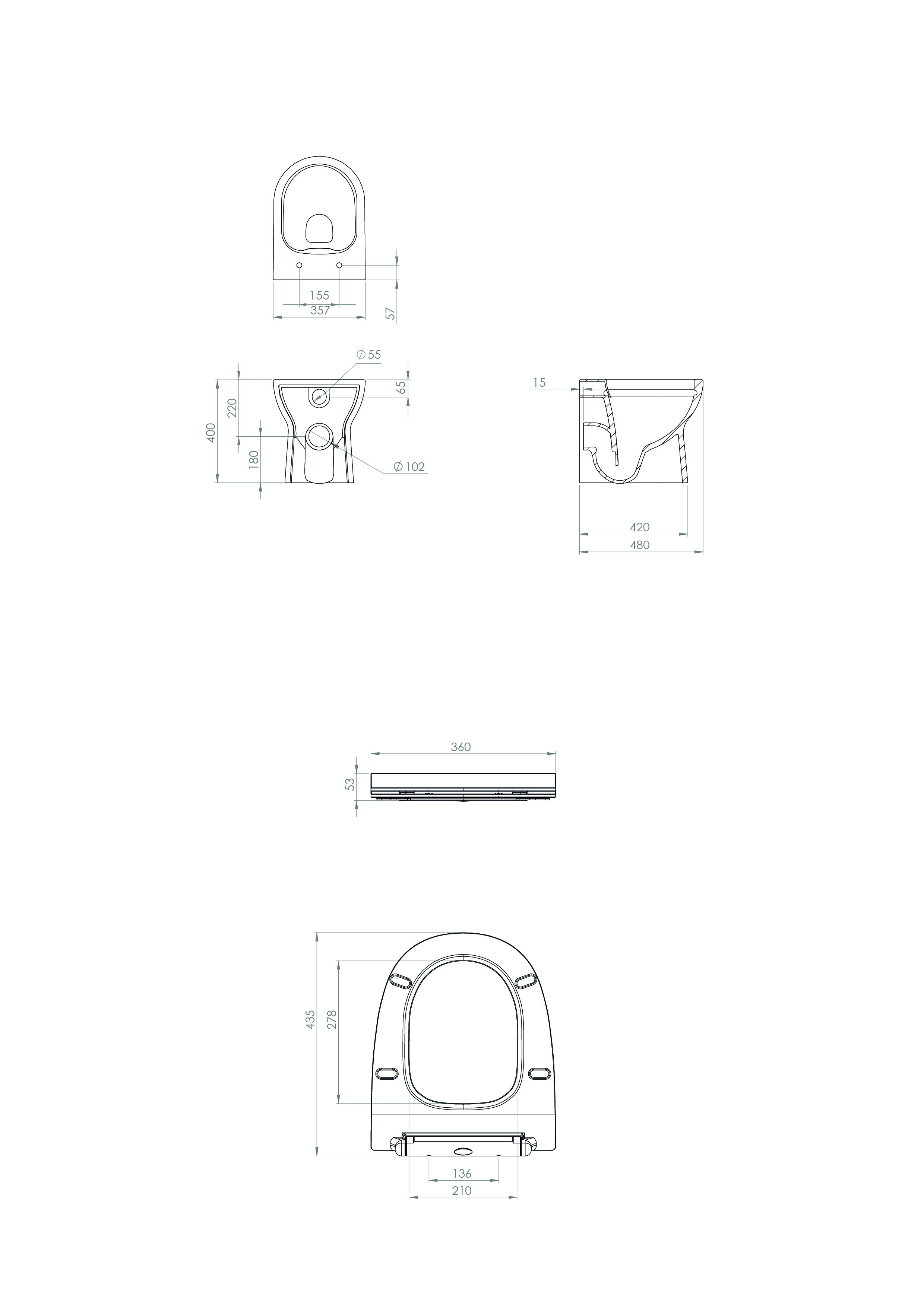

Technical Drawing

Stock Code: AIRBTW02

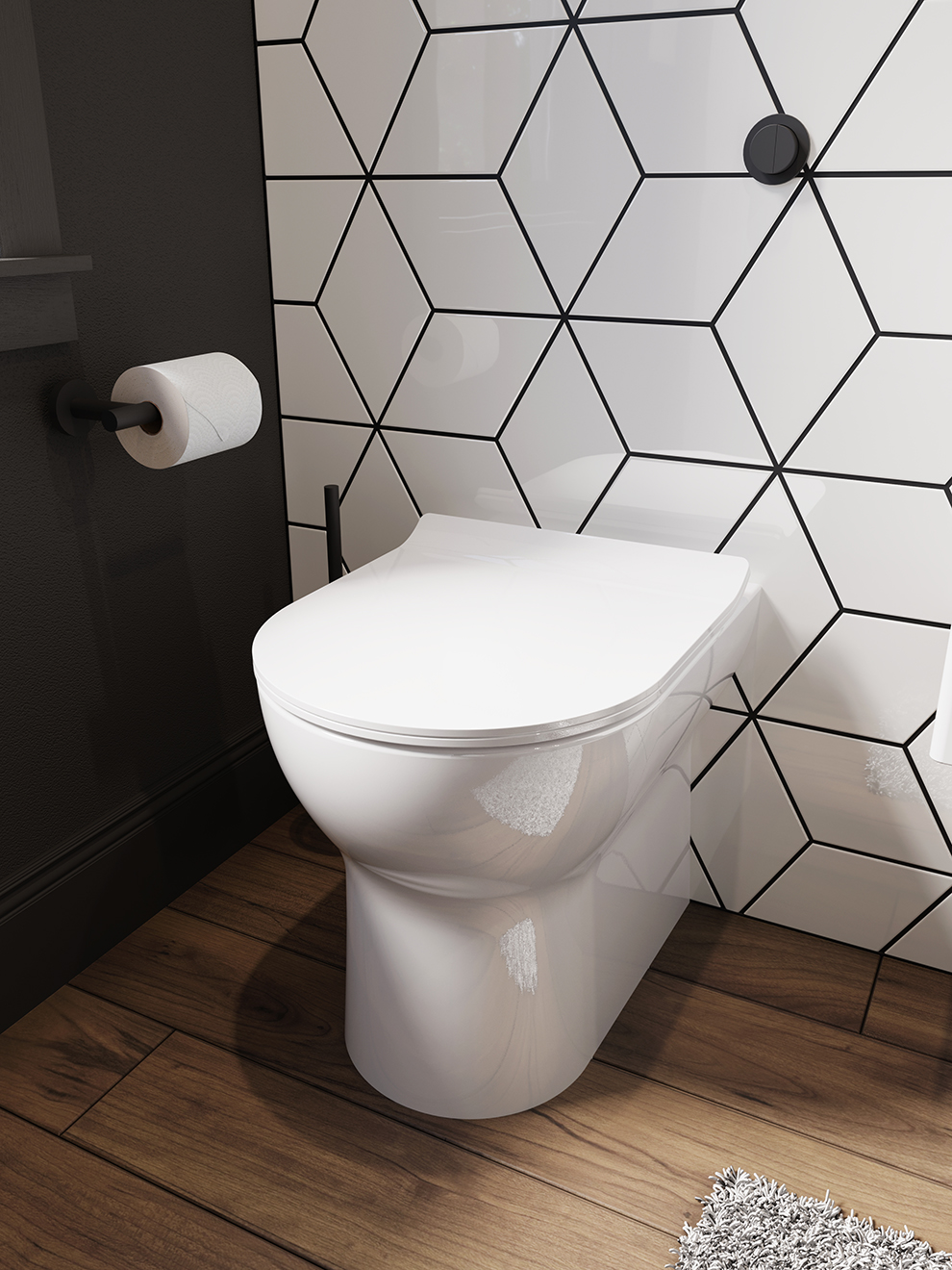

AIR back to wall WC pan & seat pack - rimless

£365.00

In stock

Description

The AIR back to wall rimless pan & seat pack is ultimately modern in both its form and function.

The pan's elegant design will work in a variety of bathroom interiors, whilst the rimless flush adds an even more contemporary look to it and is also simple to clean.

This comes with the slim-line soft closing seat - a modern seat that has a quick release function to remove it from the pan, again making cleaning easy.

Create a tidy bathroom space and opt for a back to wall pan; you can hide the cistern by having it built into the wall or a WC unit as well as save on floor space.

Component parts included:
AIRBTW01 (Pan)
AIR78 (Seat)

For optimal performance, we recommend pairing back to wall rimless pans with a high-level concealed cistern set at 6/3lt flushing.

See our FLUSHE 2.0 range for compatible WRAS approved concealed cisterns.

Additional information

Finish

Gloss White

Height

453mm

Width

357mm

Depth

480mm

Material

Ceramic, Plastic

Weight

24.5kg

Guarantee

Lifetime, 2 years on working parts

Seat Type

Soft close & quick release

Compatible Cistern(s)

FL2022, FL2024, FL2026, FL2028, HC2036, HC2037, HC2030

Type of Flushing

Rimless technology

Other Features

Pan & seat in one box

Downloads

2D File

Download

3D File

Download

Technical Drawing

Download

Instruction Manual

Download

Aftercare & Guarantee Document

Download

Technical Data Sheet

Download

Style with

FLUSHE 2.0 530mm concealed cistern with front or top flush

FLUSHE 2.0 530mm concealed cistern with front or top flush

FLUSHE 2.0 732/85mm ultra slim concealed cistern with front flush

FLUSHE 2.0 732/85mm ultra slim concealed cistern with front flush

FLUSHE 2.0 slimline dual flush concealed cistern

FLUSHE 2.0 slimline dual flush concealed cistern

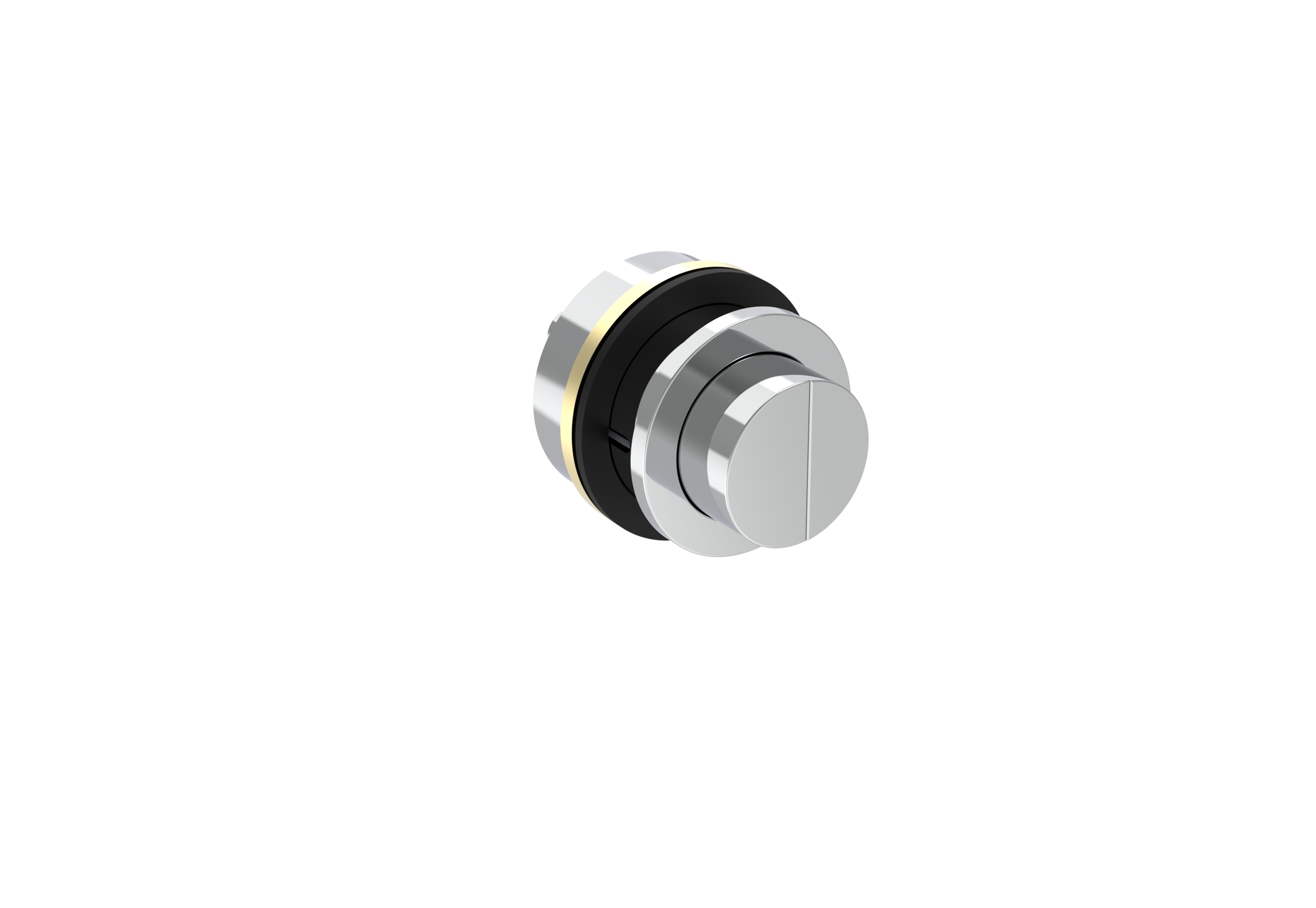

FLUSHE 2.0 brass flush button (for HC2030) - Chrome
